Installing Your Lug Mount Simplr F1, or Simplr Split rings

Featured Video Play Icon

*If you’re just installing Simplr Split Rings, not an F1 camera strap, you can skip straight to 1:07 in this video.

Your new F1 will be more pleasant to use if you do a quick “break-in” before installing it on your camera. Adjust the strap from minimum to maximum length about twenty times, by holding the end and pulling on the adjustment tab. That should do it.

Mounting a camera strap with split rings is just like putting a key on a keychain — but instead of a key, it’s a camera.

  1. Situate your F1 so the adjustment tab is in front of your body when the camera strap is fully-extended, and the camera is worn sling-style. Some people prefer to wear the camera on their left, others to their right. Do whatever feels most comfortable for you.
  2. Double-check the orientation of the strap to make sure you’re not installing it backwards or inside-out.
  3. Pry a small gap in the split ring, just wide enough to feed the end of the wire through the lug on your camera. It’s unlikely you’ll need any tools for this; your thumbnail should suffice.
  4. Turn the split ring until the entire wire has passed through the lug and it springs back together (just like a keychain).
Posted on

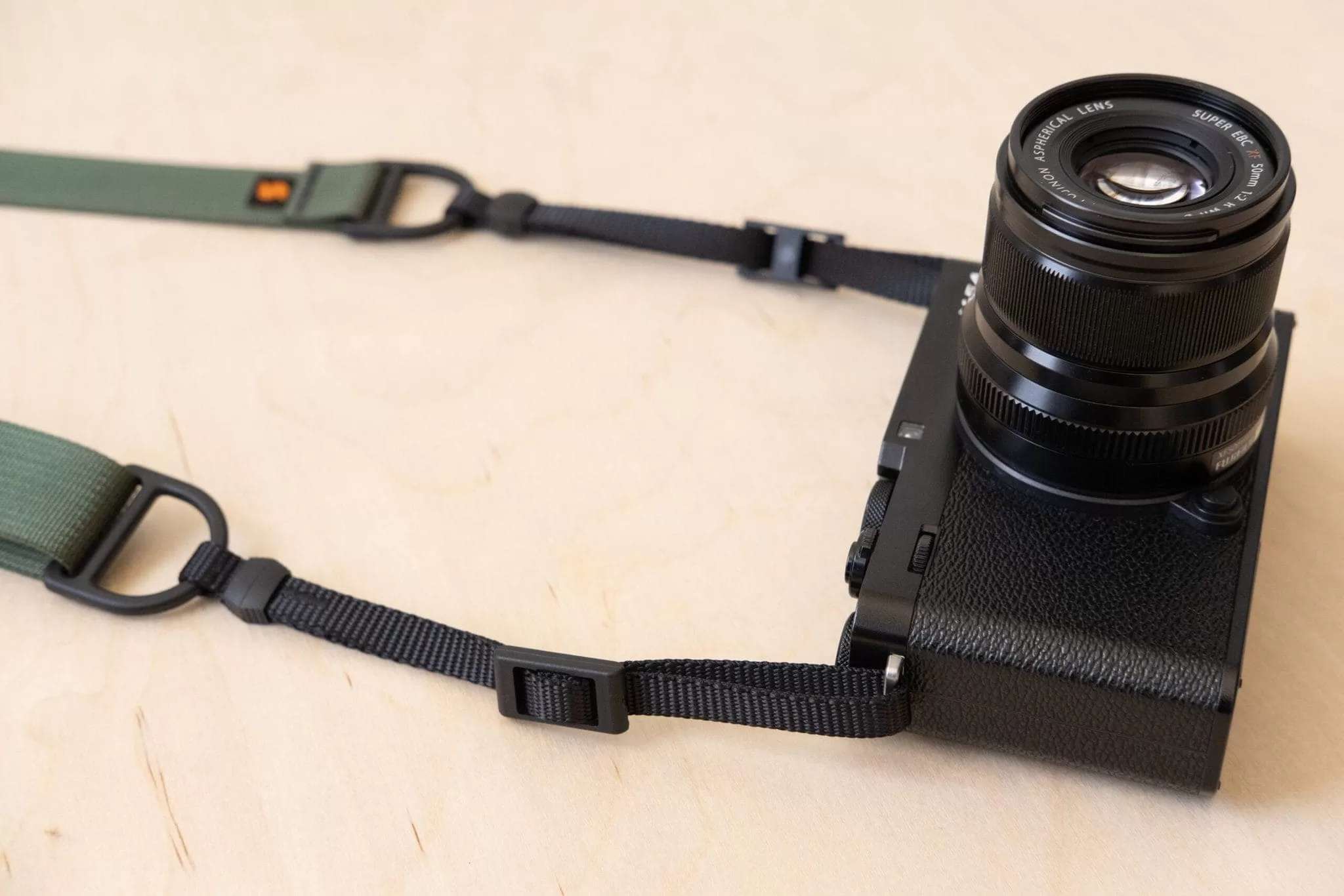

Installing Your Flat Mount Simplr F1

Installing your flat mount Simplr F1 Sling-Style Camera Strap

Your new F1 will be more pleasant to use if you do a quick “break-in” before installing it on your camera. Adjust the strap from minimum to maximum length about twenty times, by holding the end and pulling on the adjustment tab. That should do it.

The flat mount version of our F1 camera strap installs similarly to a “traditional” camera strap, with a significant difference — the sliplok and keeper are used only for installation, not to adjust the length of the camera strap.

  1. Situate your F1 so the adjustment tab is in front of your body when the camera strap is fully-extended, and the camera is worn sling-style.

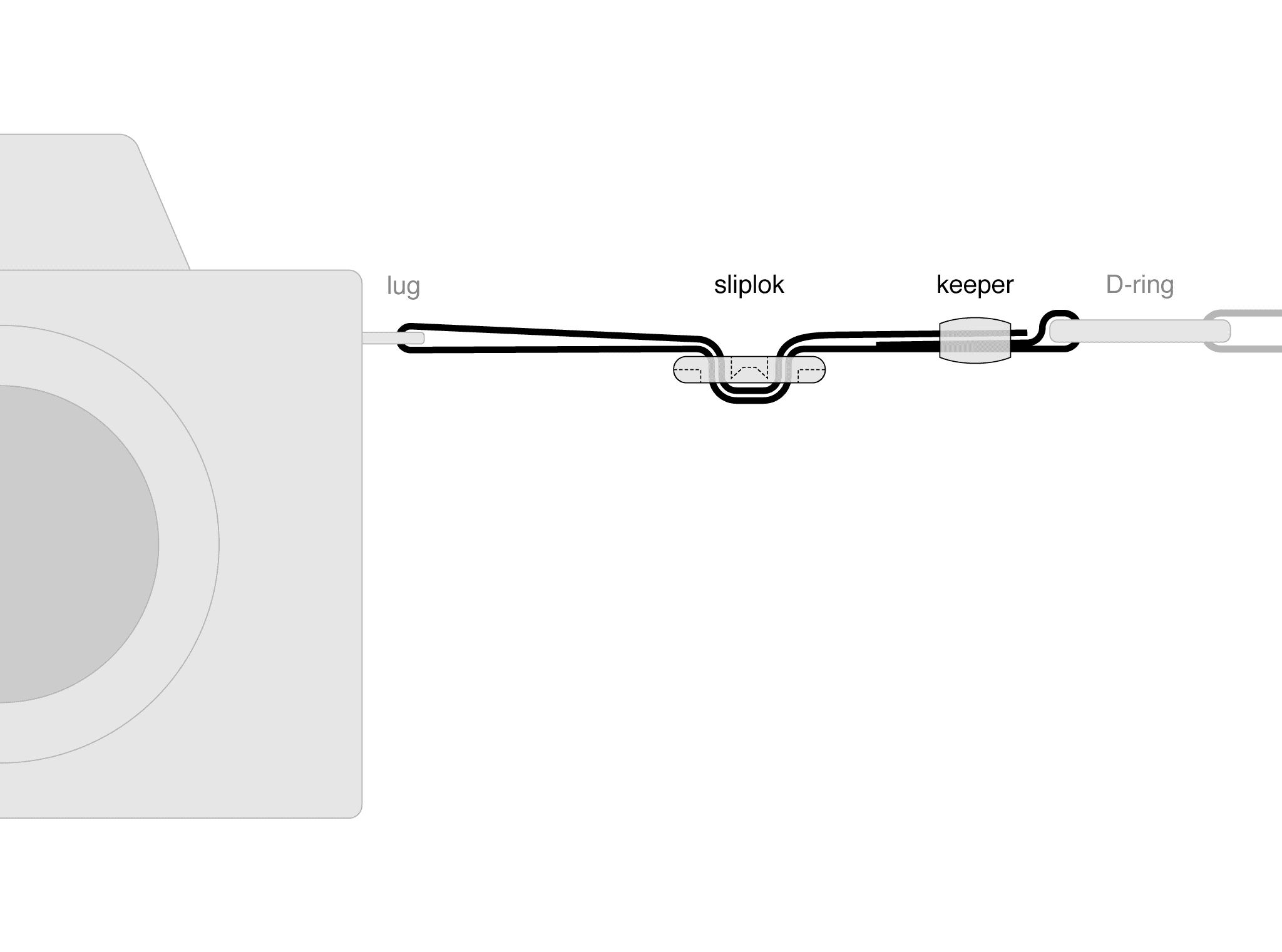

  2. Feed the webbing once through the keeper, then the sliplok, as shown.
  3. Insert the webbing through the lug, far enough so the webbing can double-back along itself. The webbing loop will be about 6″ (15cm) long.
  4. Feed the webbing back through the sliplok, then the keeper, as shown.
  5. Cinch the keeper close to the D-ring (push it past the stitching that holds the webbing together). This will keep everything nice and neat, with no stray webbing anywhere.

Click here for a larger view.
